Form Factor :

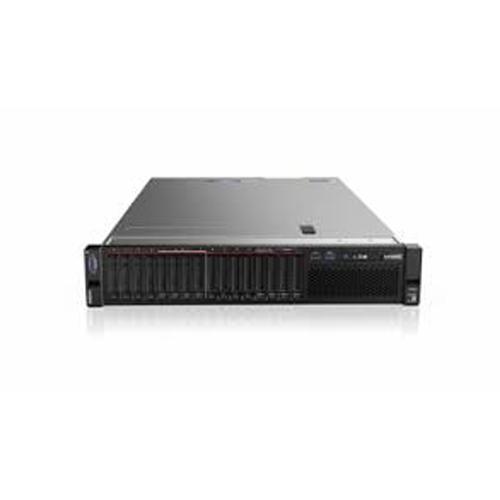

2U Rack Server
Processor :
2x or 4x Intel® Xeon® processor Scalable family CPUs, up to 165W
Memory :
Up to 6TB† in 48x DIMM slots; 2666MHz TruDDR4 DIMMs
†3TB TB at GA; 128GB DIMMs available in the near future. Available prior to GA via special bid.
Expansion Slots :
Up to 9x PCIe plus 1x LOM; optional 1x ML2 slot
Internal Storage :
Up to 2x 2.5-inch storage bays supporting SAS/SATA HDDs/SSDs, or NVMe/U.2 SSDs; plus 1x or 2x (mirrored) M.2 (SATA) fixed boot drives (opt. RAID 1)
RAID Support :
Hardware RAID (up to 16 ports) with flash cache;up to 16-port HBAs
Network Interface :
4x 10GbE LOM with fabric connector; or 2x 10GbE, 4x 10GbE or converged network mezzanine adapters
Power Supply :
2x hot swap/redundant: 750W/1100W/1600W AC 80 PLUS Platinum
Operating Systems :
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere.
Limited Warranty :
1- and 3-year customer replaceable unit and onsite service, next business day 9x5, opt. service upgrades
